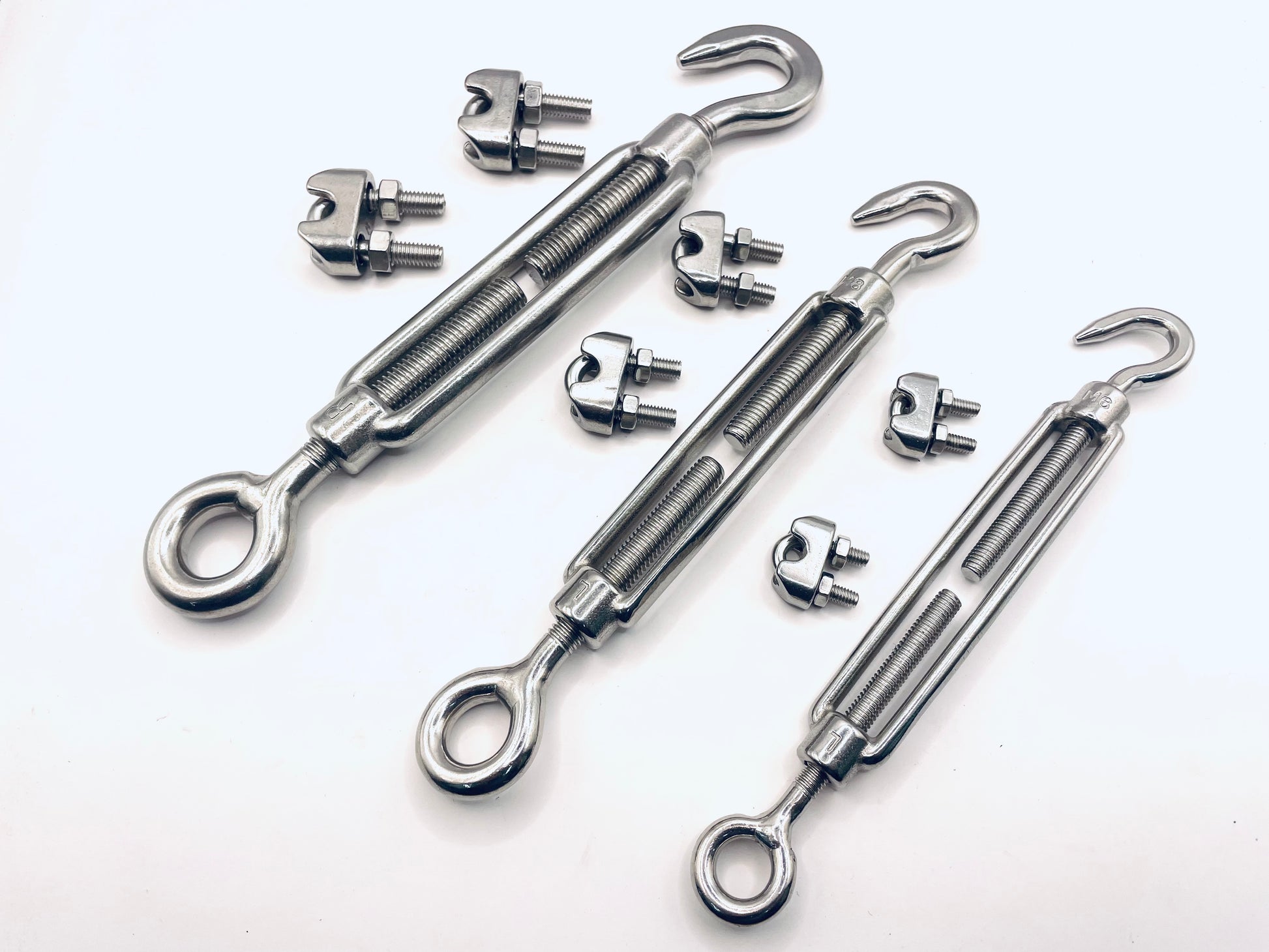

Open Turnbuckle Hook/Eye
Open Turnbuckle Hook/Eye
Regular price
KSh600.00
Regular price
Sale price
KSh600.00
Unit price
per
Couldn't load pickup availability
Material: Stainless Steel
Class / Grade: A4 (316) , Electro Galvanized
Size: 6,8,10mm - Dimensions indicate material cross-section and base length
These are also known as tensioners, turnbuckles, straining screws, adjusters, or barrel strainers.
One end is right-handed and the opposite end is left-handed. You create tension by simply rotating the turnbuckle centre body.

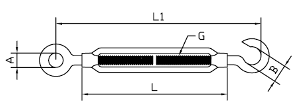

| Dimension | Size G | A | B | L | L1 | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Grade |
| 6 | 6 | 10 | 10 | 110 | 148 | SS316 |
| 8 | 8 | 12 | 11 | 110 | 153 | SS316 |
| 10 | 10 | 16 | 10 | 120 | 185 | SS316 |
| 6 | 6 | 10 | 8 | 110 | 148 | Electro Galvanized |
| 8 | 8 | 12 | 11 | 110 | 153 | Electro Galvanized |
| 10 | 10 | 16 | 14 | 125 | 185 | Electro Galvanized |
