Threaded Stud Swageless Terminal
Threaded Stud Swageless Terminal
Only 30 left in stock
Material: Stainless Steel, Polished finish
Class / Grade: A4 (316)
Size: Thread is M6 diameter with terminal made to suit a 4mm diameter wire
For steel wire rope, Coastal Solutions provides sturdy swageless stud thread connections.
These make a great substitution for swaging. They are completely self-assembled (with the aid of a spanner) for a quick, secure, and polished finish.
Marine grade A4-AISI 316 polished stainless steel is used for the terminal and centre cone.

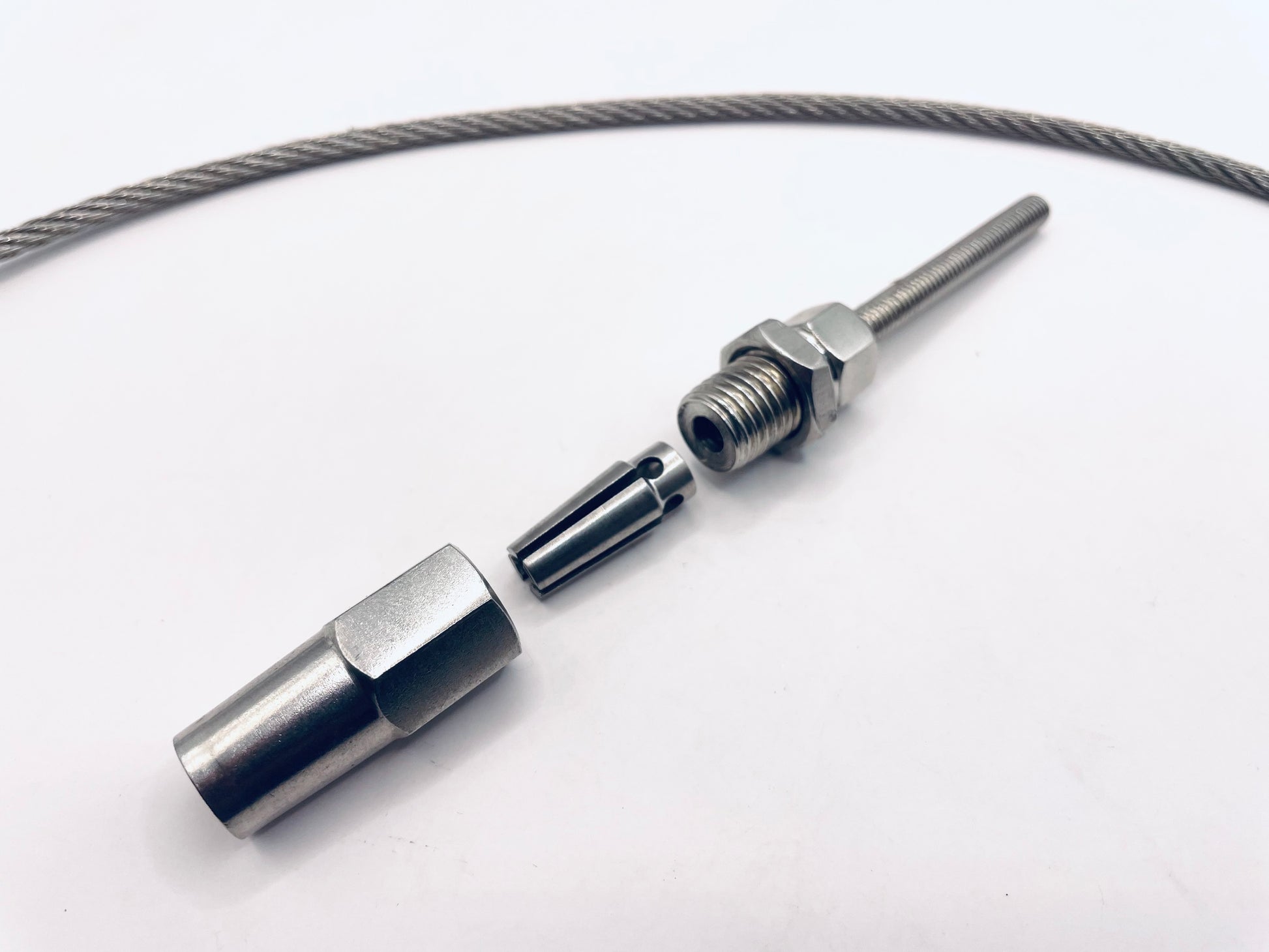

The cone covers the entire wire rope in this novel, simple fitting mechanism. Compared to less expensive multi-part options, it is more simpler to install.
These stud thread terminals are frequently referred to as self-assembly or DIY compression fittings.
Steel wire ropes with diameters of 4mm are compatible.

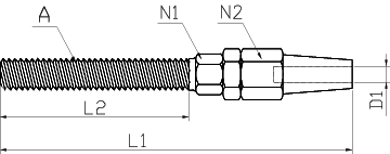

Dimension | Size A | L1 | L2 | D1 | N1 | N2 |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
6*4 | 6 | 92 | 47 | 4 | 12 | 14 |
