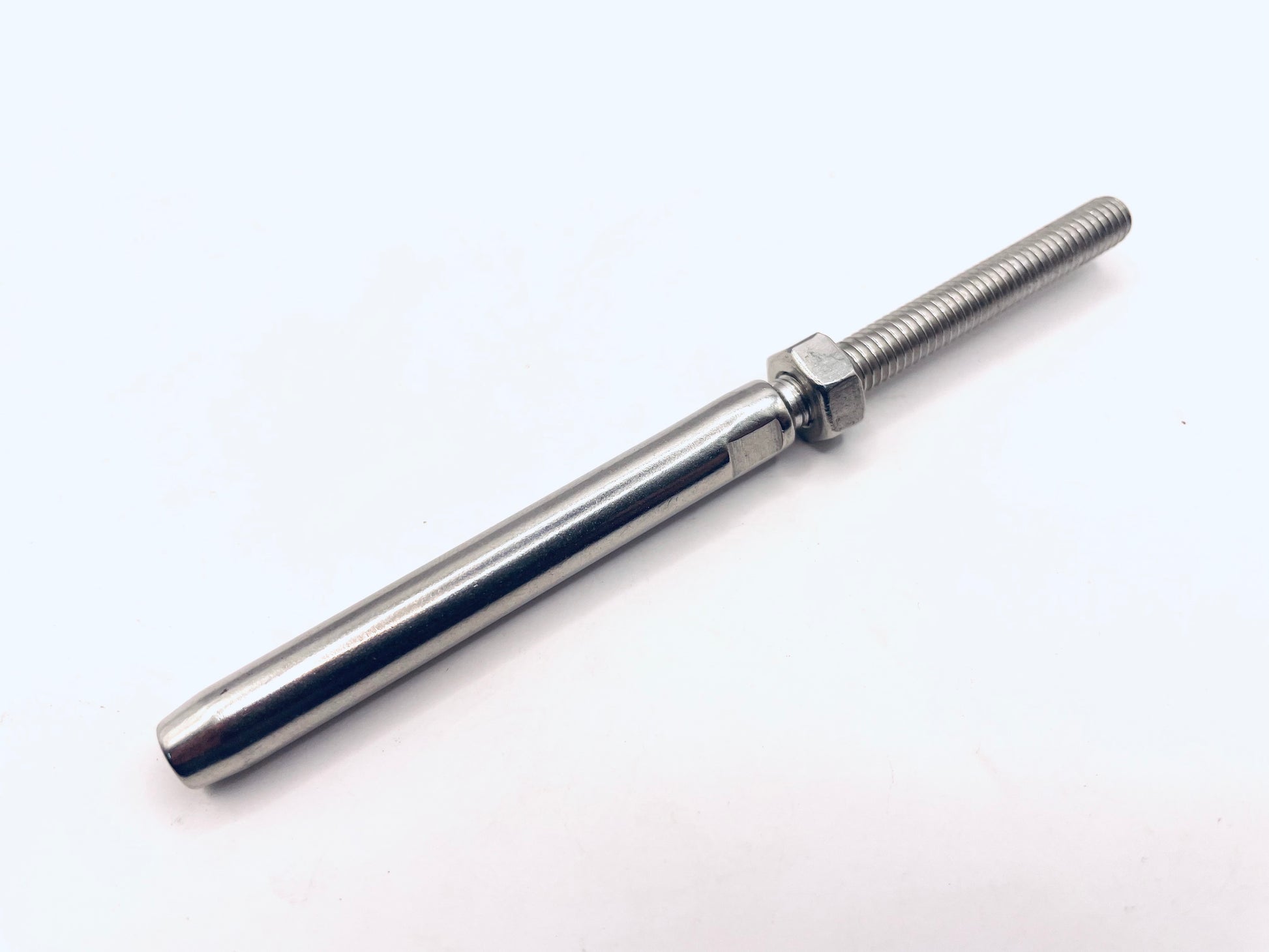

Wire rope Swage terminal with threaded stud
Wire rope Swage terminal with threaded stud
Regular price
KSh400.00
Regular price
Sale price
KSh400.00
Unit price
per
Only 6 left in stock
Couldn't load pickup availability
Material: Stainless Steel, Polished finish
Class / Grade: A4 (316)
Size: Thread is M6 diameter with terminal made to suit a 4mm diameter wire Right hand thread
- These fittings need to be swaged onto your steel wire rope.

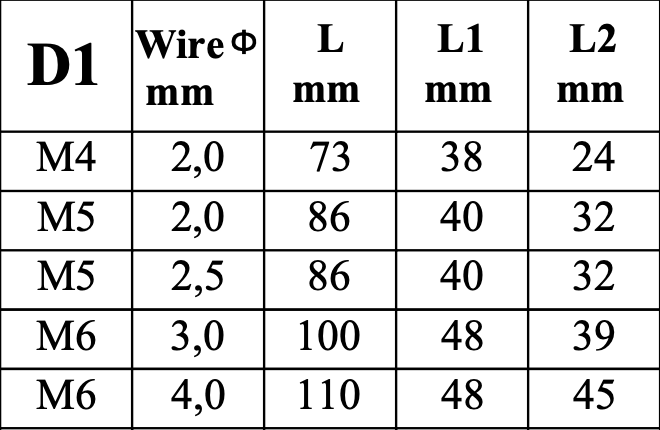

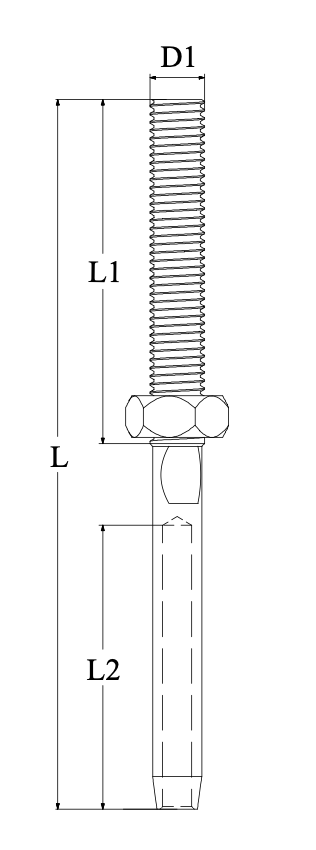

| Dimension | D1 | Wire | L | L1 | L2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| M6*4 | M6 | 4 | 110 | 48 | 45 |
