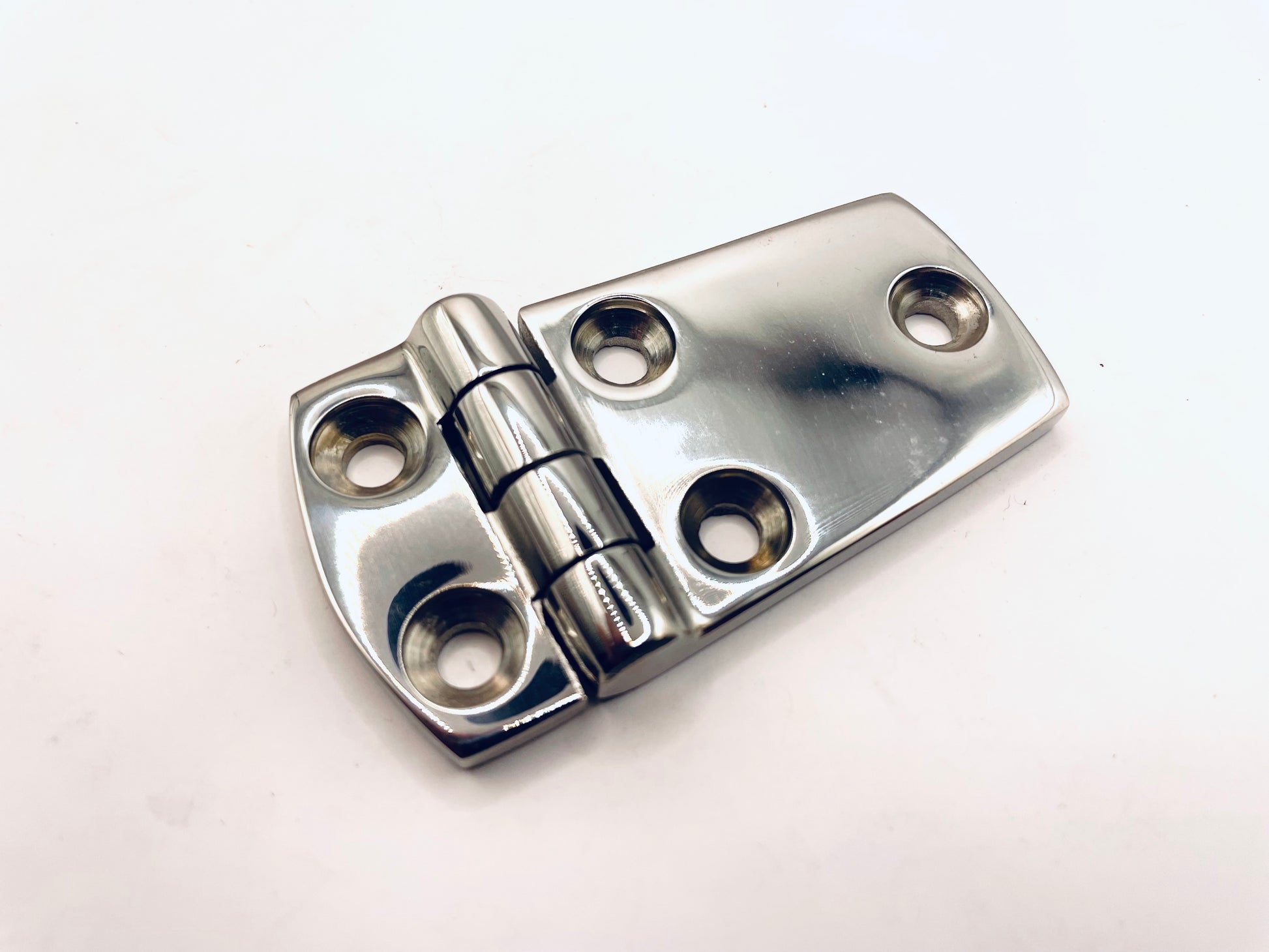

Heavy Duty Door Hinge Unequal

Material: Stainless Steel
Class / Grade: A4 (316)

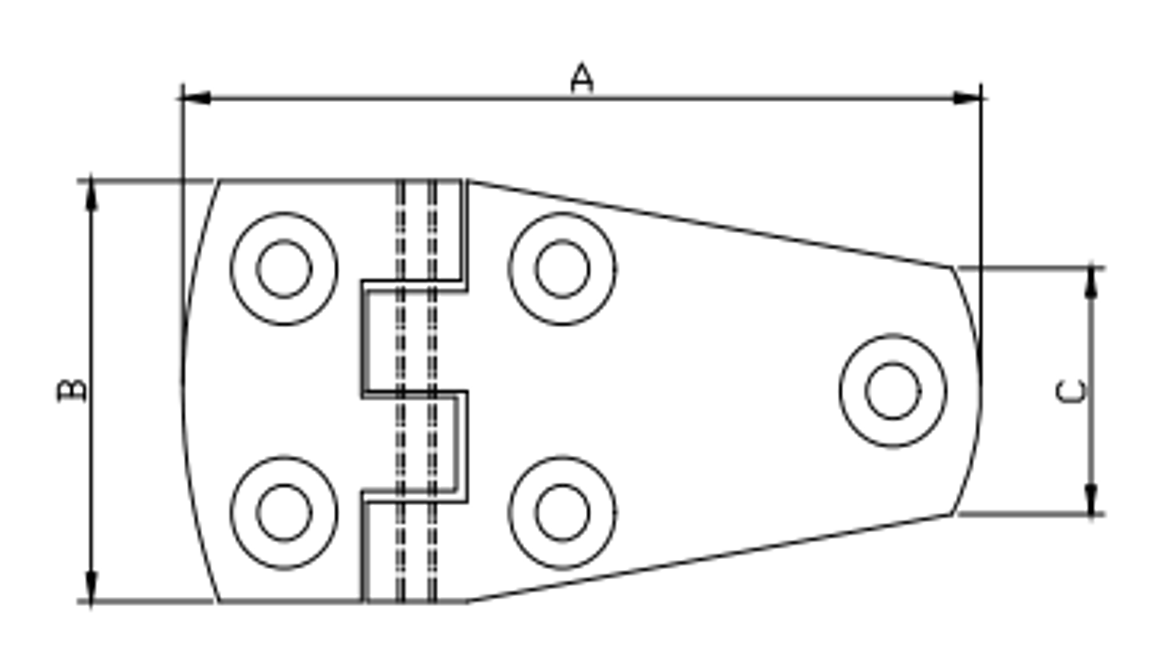

Size: Dimensions indicate the length and width of the hinge at the centre point. The hinge is 4mm thick.

Ideal fixings are 316 stainless screws No:10 4.8mm raised countersunk or countersunk. Or M5 countersunk socket/machine screw with nyloc nut or dome head nut.

 Marine grade AISI 316-A4 stainless steel is used to make our offset short sided door hatch hinges. The finish is highly polished.

These small-sided door hinges made of stainless steel are ideal for installations in confined spaces.
